Chat

Non-admin users assign work here, not in the Console. There are two conversation UIs in Development; both talk to the same Conversation Gateway (society-chat, OpenAI-compatible API).

Related: Chat models · Ports · Sessions · RAGs.

Endpoints

Environment	Primary conversation UI	Alternate conversation UI	Gateway
Development	http://127.0.0.1:3000 (separate stack)	http://127.0.0.1:3080 (separate stack)	http://127.0.0.1:8094/v1
Client (IdentIA)	copilot host (OIDC)	chat host → :3080; admin :3081	society-chat:8094/v1

OpenAI-compatible connection (what each UI configures toward SiS):

• Base URL: …/v1 (Dev from host: http://127.0.0.1:8094/v1; inside the orchestrator network: http://society-chat:8094/v1)
• API key: SOCIETY_CHAT_API_KEY (may be empty in Dev)
• Models: society/* ids from GET /v1/models

Whether to standardise on one conversation UI or keep both is an open product decision. Today both coexist.

---

Primary conversation UI — step by step (Dev)

This UI is not society-chat. Connections and models live in its local database, not in the main bundle environment.

1. Start and authenticate

1. Check it responds: curl -sf http://localhost:3000/ → 200.
2. Open http://localhost:3000 (not 127.0.0.1 — SSO redirect is registered for localhost).

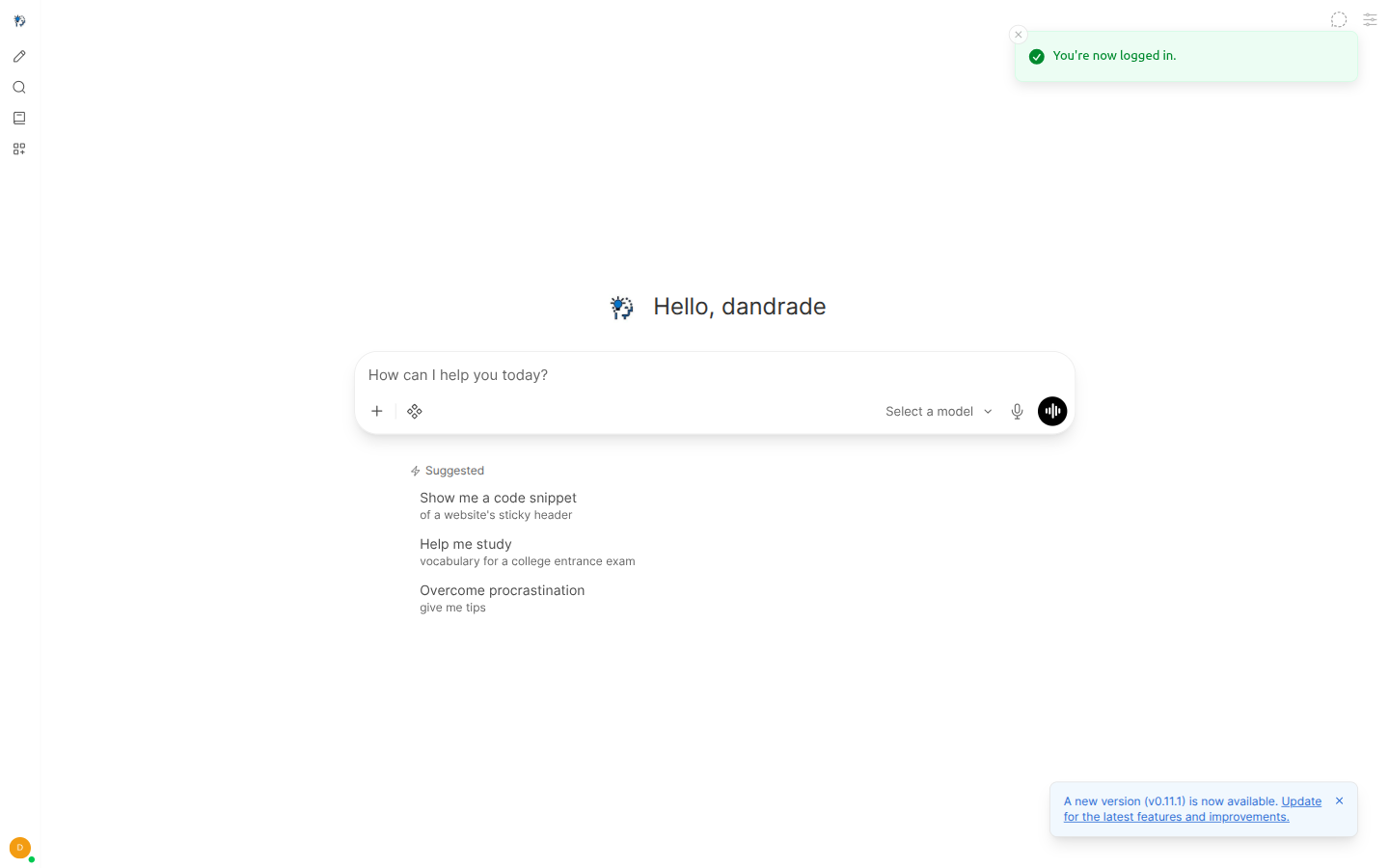

3. If you see Continue with IdentIA, complete OIDC (same account as the Console where SSO is enabled).

2. Connect the Conversation Gateway

1. Admin (or gear) → Settings → Connections.
2. Add connection → OpenAI / OpenAI-compatible.
3. Fill in:

Field	Dev value
URL / Base URL	http://society-chat:8094/v1 from the conversation UI container network. Dev shortcut: website/scripts/sync-conversation-ui-society-key.sh writes the same into the UI database.
API Key	SOCIETY_CHAT_API_KEY from .env (re-run sync after key rotation)
Model IDs	leave discovery via GET /v1/models

4. Save and Verify if offered.

Empty model list: connection not saved or URL does not reach society-chat from the UI container.

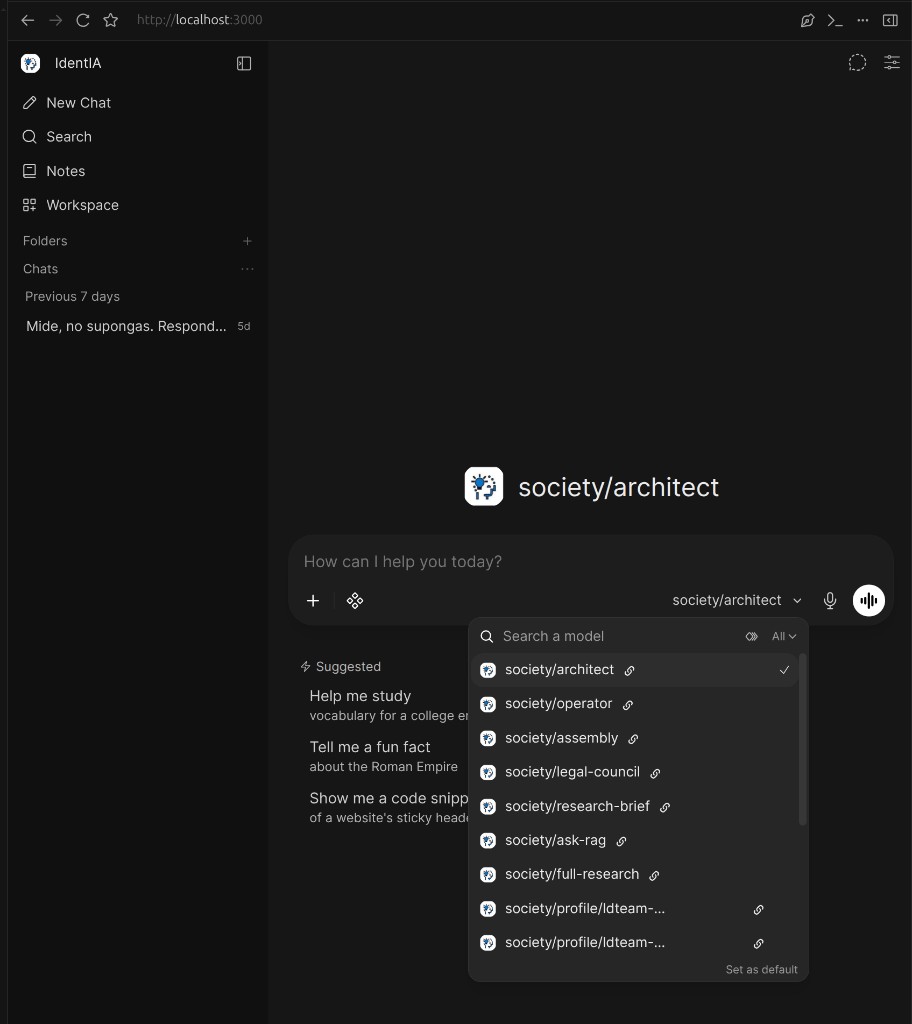

In the screenshot: after saving the gateway connection, the Search a model dropdown (left of the mic in the chat bar) lists society/* ids (e.g. society/ask-rag, society/architect).

3. Pick a model and chat

1. In the chat bar, open the model selector to the left of the mic.
2. In Search a model, choose per the table below.

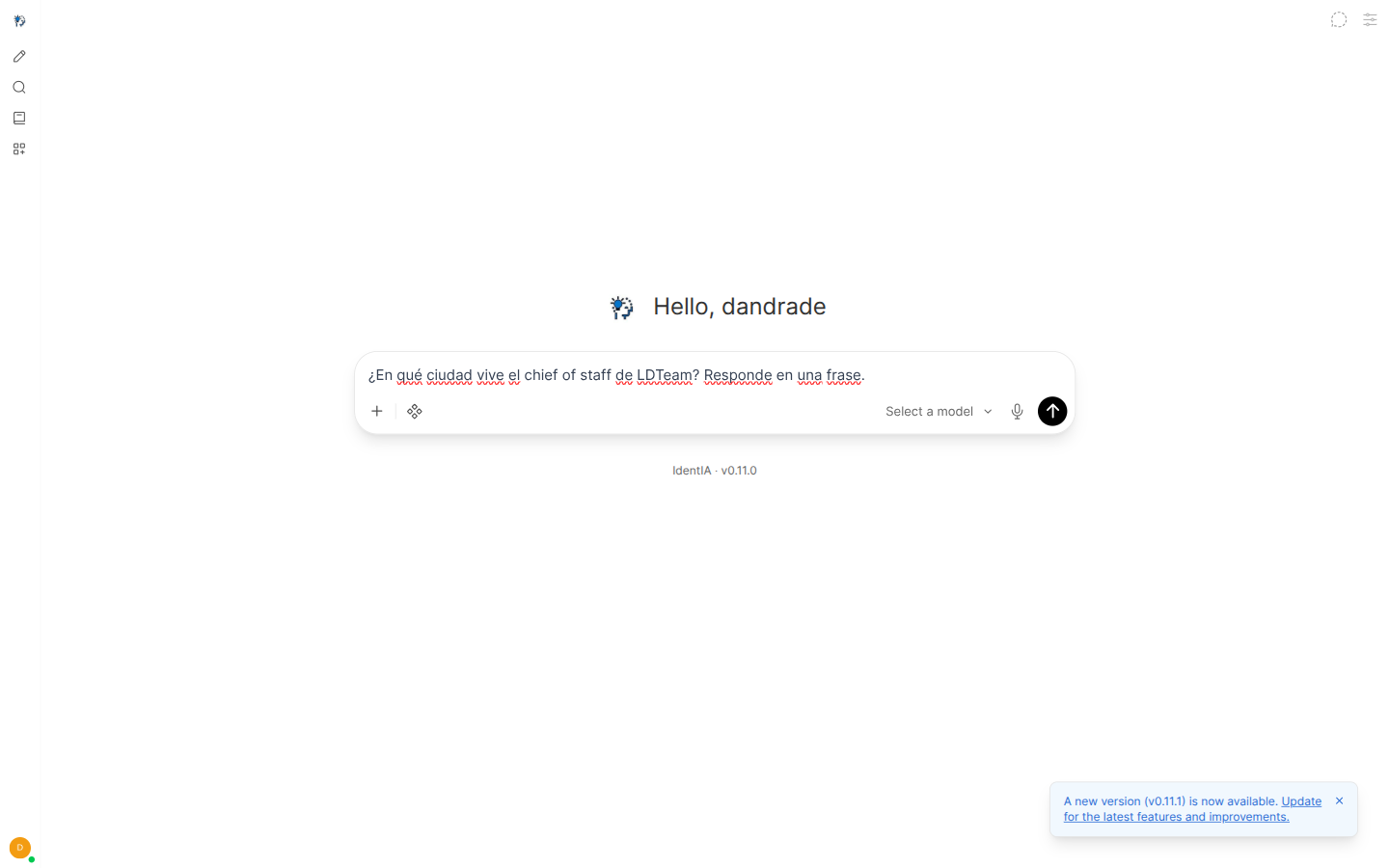

3. Type the prompt and send.

Model	When to use
society/architect	Institution intake; persists the SPEC (curated door to the Primary architect)
society/operator	Chat with the Primary operator
society/ask-rag	RAG query for the researcher in SOCIETY_CHAT_RESEARCH_BRIEF_*
society/research-brief	Researcher → writer → auditor pipeline; auto-RAG when corpus exists
society/profile/<host>/<profile>	Direct chat with a live profile

Full list and hidden aliases: Chat models.

---

Alternate conversation UI — step by step (Dev)

Separate compose project (not part of the main R6 bundle). Requires the external network self-improving-society_default (SiS already up).

The gateway connection is pre-wired in its config (endpoint SIS → http://society-chat:8094/v1, fetch: true for society/* models). No manual Connections step like the primary UI.

1. Start the stack

cd infra/conversation-ui
cp .env.example .env   # fill secrets; SOCIETY_CHAT_API_KEY = same as SiS root .env
containers compose up -d
# UI:    http://127.0.0.1:3080
# Admin: http://127.0.0.1:3081

2. Authenticate (Dev with SSO)

1. Open http://127.0.0.1:3080/login.
2. Sign in with IdentIA (OIDC).

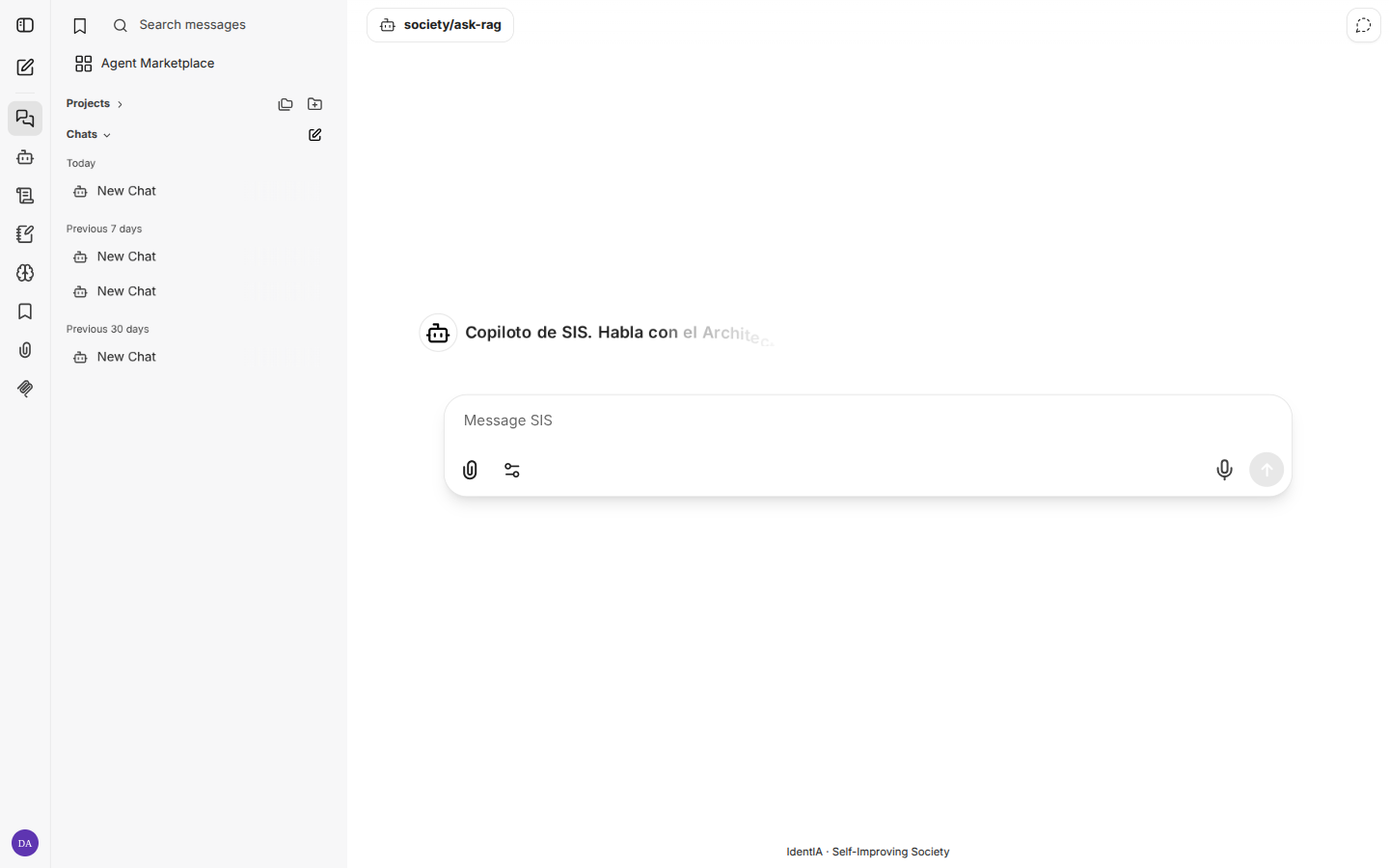

3. After redirect you should see My Agents top left.

3. Pick agent and chat

This UI does not use Search a model (that is the primary UI). Flow in three steps:

1. Click My Agents (top left).
2. Choose endpoint SIS (pre-wired to society-chat).

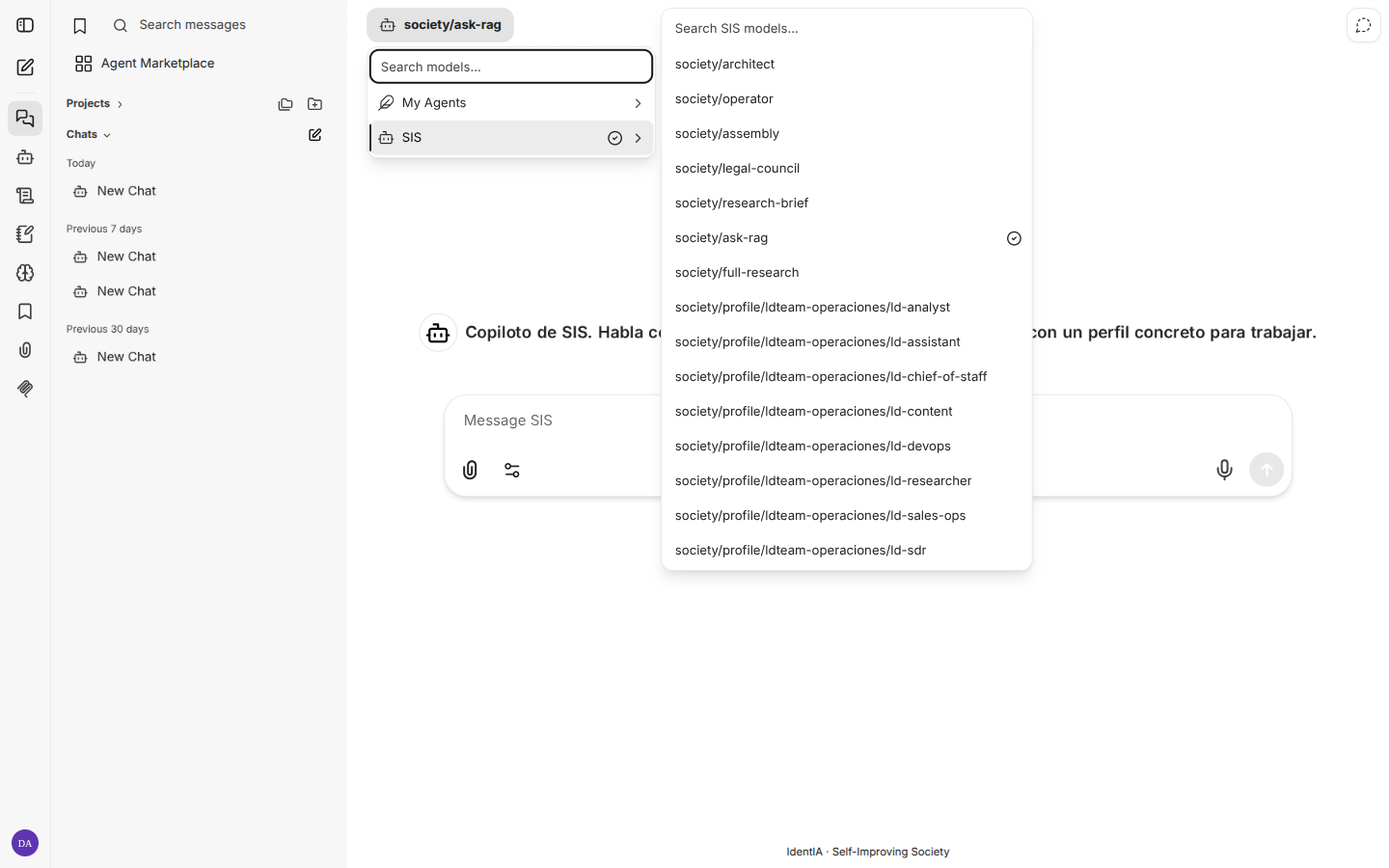

3. Pick an agent, e.g. society/ask-rag.

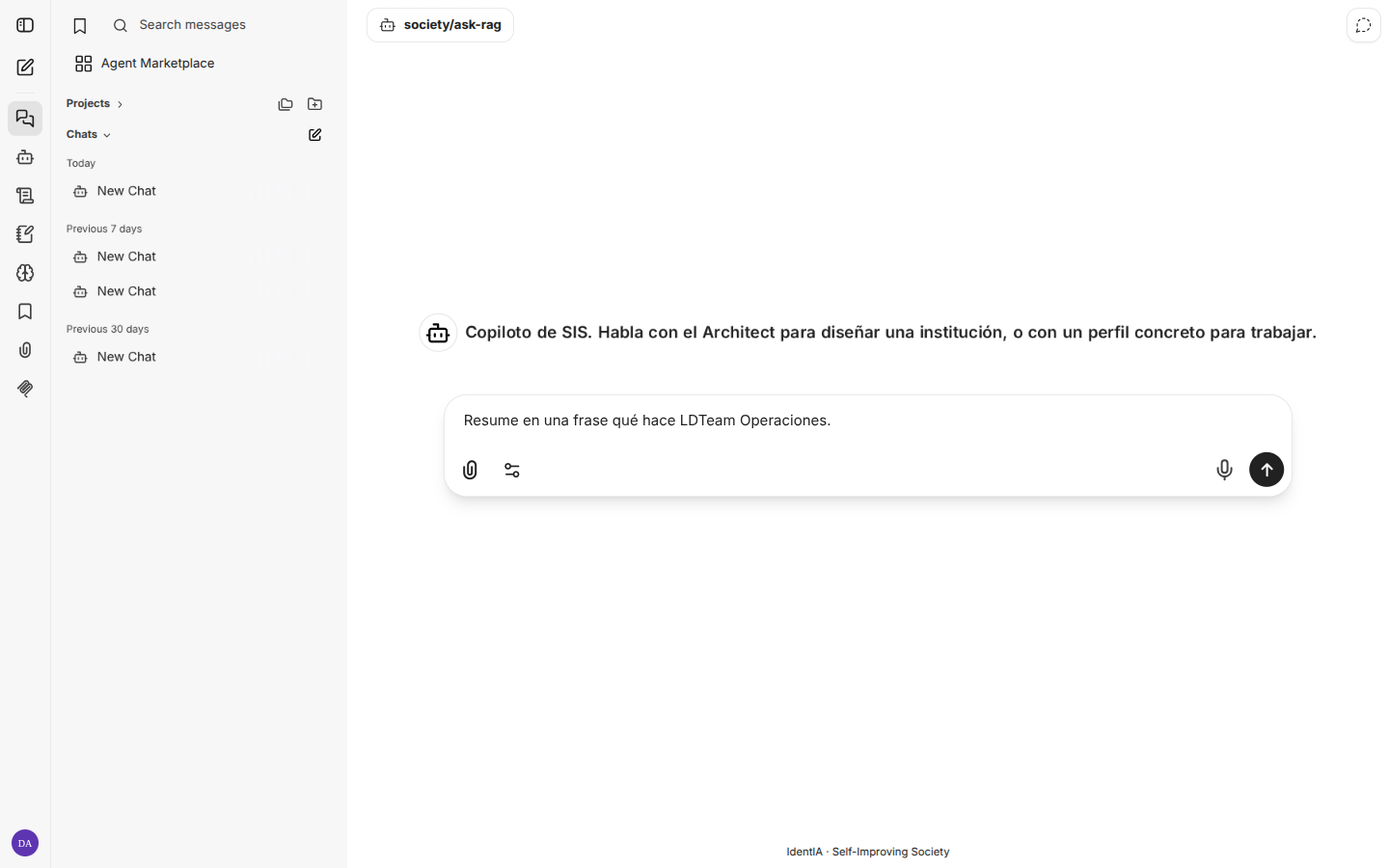

Until step 3 the composer may show Please select an Agent and send stays disabled.

4. Admin panel (:3081)

User lifecycle for this UI only (not OIDC nor Console → Users). On client installs, reach it via VPN/SSH; not published on the edge proxy unless explicitly decided.

When to use which UI: same gateway. The alternate UI ships SIS endpoint, history search, and a local user admin panel; the primary UI is the default copilot in Dev (:3000) but needs manual Connections setup.

---

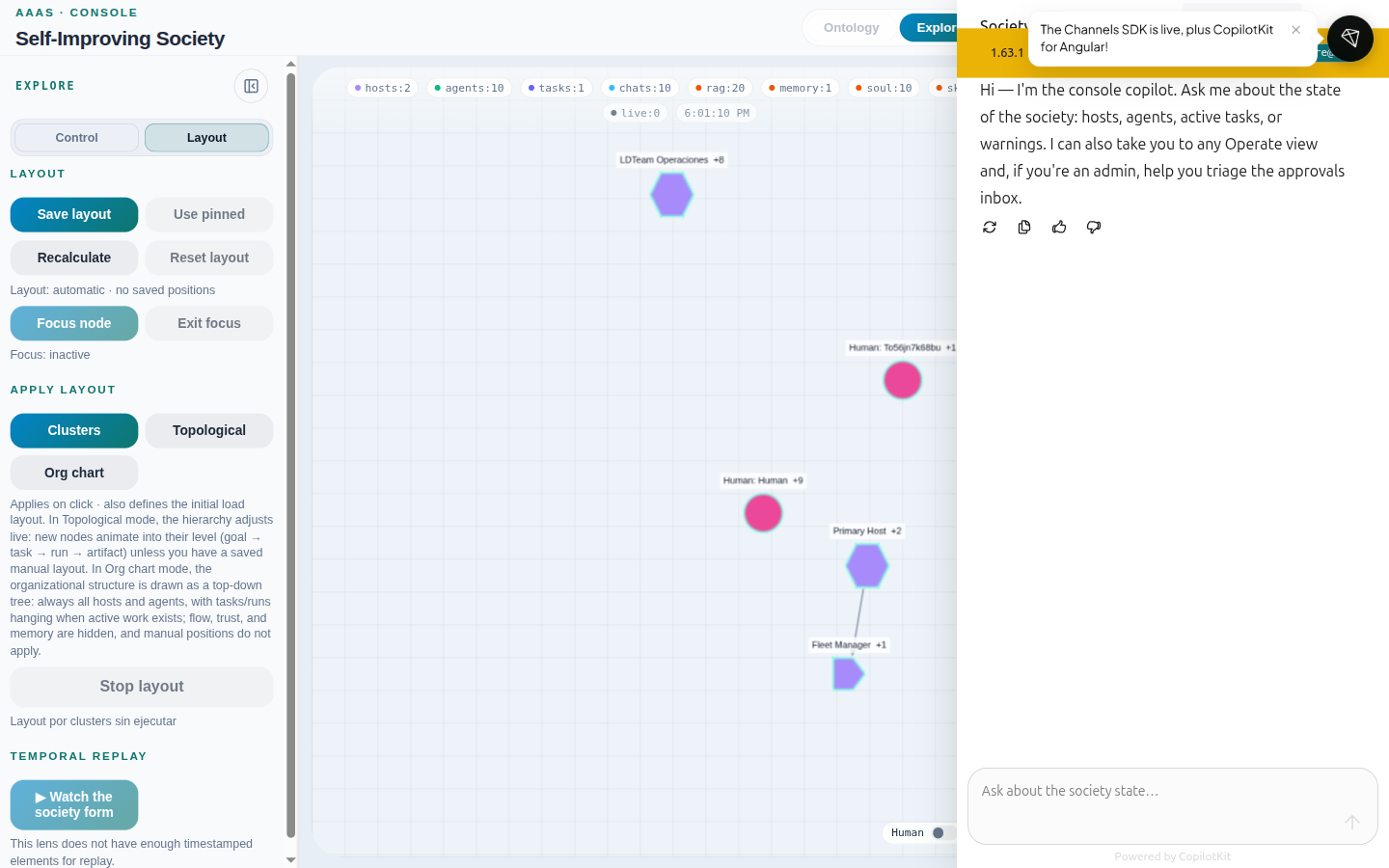

Console copilot widget

Teal bubble bottom-right in Operate and Explore — integrated copilot that:

• Reads the graph snapshot and current Operate view context.
• Answers state questions (hosts, agents, tasks, warnings).
• Can navigate to other Operate views (with permission).
• Admins: triage the Approvals queue.

Related: Operate → Sessions for society-chat threads in table form.

---

RAG query after ingest (E2E)

Chat does not use RAG just because corpus exists in the vector index. Two pieces are required:

1. Ingest into the correct collection (RAGs).
2. MCP society_rag in the profile harness config (or ask-rag / research-brief mode with env pointing at the right host/profile).

Option A — Unique code in markdown

Step	Action	Verification
1	Ingest a .md with a unique code into the profile RAG	RAGs view: status ok; search returns the fragment
2	Confirm MCP on profile: society_rag in harness config	society profile show <profile> --host <host> via executor
3	Chat with society/profile/<host>/<profile> or society/ask-rag with SOCIETY_CHAT_RESEARCH_BRIEF_*	Response cites the ingested code
4	(Optional) Same prompt in primary conversation UI	Same citation

Option B — PDF corpus + alternate UI + ask-rag

Legal corpus in the researcher RAG, queried via society/ask-rag (SOCIETY_CHAT_RESEARCH_BRIEF_* env).

Step	Action	Verification
1	Copy PDF to data/rag-fixtures/ and ingest (SOCIETY_RAG_WRITE_ENABLED=true)	society rag list --profile … --host … shows chunks
2	Confirm env on society-chat	SOCIETY_CHAT_RESEARCH_BRIEF_HOST_NAME and PROFILES
3	Alternate UI: login → My Agents → SIS → society/ask-rag	Composer enabled
4	Ask about document content	Prose answer with chunk citation

Surface	URL	Use
Console widget	Bubble on :8093	Session / snapshot context
Conversation Gateway	http://localhost:8094/v1	UIs / curl
Primary conversation UI	http://localhost:3000	End-user chat

curl -sS http://127.0.0.1:8094/v1/models | jq '.data[].id' | head

---

What not to do

• Do not use society/profile/<primary>/architect or …/operator on the Primary Host: curated doors are society/architect and society/operator. Raw architect chats but does not persist the SPEC.
• society/inventory-check and society/debate-map are retired.
• CLI RAG ≠ chat RAG: society rag list can succeed while chat sees no corpus if MCP society_rag is missing on the profile.

---

Troubleshooting

Symptom	Likely cause	Fix
Empty models in primary UI	No connection to :8094/v1 or stale key in UI DB	Settings → Connections or sync script; URL must reach society-chat from container
Response without RAG citations	Profile without society_rag or host/collection mismatch	Reprovision template; align host in ingest and MCP
ask-rag answers wrong institution	SOCIETY_CHAT_RESEARCH_BRIEF_* misaligned	Recreate society-chat with correct env
401 on Console copilot	Session expired	Re-login via localhost:8093

Regenerate screenshots (operators)

cd website
OPERAR_LOCALE=en node scripts/capture-explorar-chat.mjs
CHROME_USER_DATA=$HOME/.config/google-chrome CHROME_PROFILE=Default \
  node scripts/capture-operar-en.mjs

Output: static/img/chat/en/chat-step-*.png and static/img/operar/en/.
